Product features:

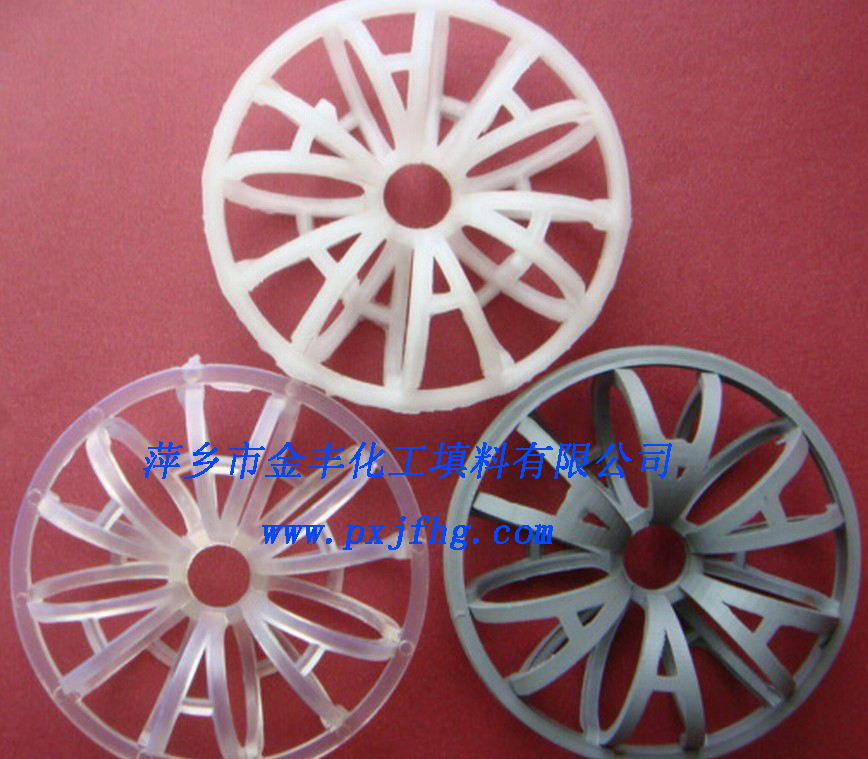

Plastic garland called Taylor garland, is composed of 12 small ring in radial arrangement and a big ball. Because the gap filler can liquid holdup is higher, can make the longer residence time of the liquid, thereby increasing the contact time of gas-liquid two-phase flow, the mass transfer efficiency was improved filler.

Plastic garland has a large void ratio, low pressure drop and mass transfer unit height, the high point, vapor-liquid contact fully, the proportion of small, high mass transfer efficiency.

Application range:

The use of temperature plastic garland applied to various medium is 60-150 degrees Celsius, used for washing, gas purification tower.

Product parameter:

Specifications

D * H * S ( mm )

The specific surface area

M² /m³

Void ratio

%

Accumulation of weight

Kg/m³

Number of accumulation

N/m³

Φ 25× 9 ×( 1.5 ×2 )

269

82

103

170000

Φ 47× 19 ×(3×3)

185

88

85

32500

Φ 51× 19 ×( 3 ×3 )

180

89

75

25000

Φ 59× 19 ×( 3 ×3 )

150

92

70

17500

Φ 73× 28 ×( 3 ×4 )

127

89

55

8000

Φ 95× 37 ×( 3 ×6 )

94

90

53

3600

Φ 145× 48 ×( 3 ×6 )

65

95

55

1100

★executive standard

The people's Republic of China machinery industry standard HG/T 3986-2007 " technical conditions " plastic tower packing.
