| Tower internals |
|
 |

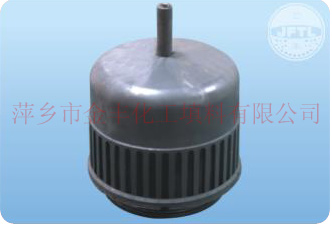

| Round blister |
| release time：2012-10-11 released by：Pingxiang City Jinfeng Chemical Packing Co., Ltd. attention： 7293 |
|
材料類別
名稱 |
Ⅰ類(A3F) |
Ⅱ類(1Cr18Ni9Ti) |
|
公稱直徑Dg |
80 |
100 |
150 |
80 |
100 |
150 |
|
泡帽外徑×壁厚D1×S1 |
80×2 |
100×3 |
158×3 |
80×1.5 |
100×1.5 |
158×1.5 |
|
泡帽頂部外徑D3 |
aaa |
aaa |
152 |
aaa |
aaa |
152 |
|
升氣管外徑×壁厚D2×S2 |
57×3.5 |
70×4 |
108×4 |
57×2.75 |
70×3 |
108×4 |
|
總高度H1 |
95 |
105 |
107 |
95 |
105 |
107 |
|
升氣管高度H2 |
57 |
62 |
64 |
57 |
62 |
64 |
|
泡帽高度H3 |
65 |
75 |
73 |
65 |
75 |
73 |
|
泡帽頂到齒縫H4
高 度 |
1 |
40 |
45 |
aaaa |
40 |
45 |
aaaa |
|
2 |
35 |
42 |
aaaa |
35 |
42 |
aaaa |
|
3 |
30 |
38 |
aaaa |
30 |
38 |
aaaa |
|
支架至泡帽底端高度H5 |
aaa |
aaa |
45 |
aaa |
aaa |
45 |
|
齒縫高度h |
1 |
20 |
25 |
35 |
20 |
25 |
35 |
|
2 |
25 |
28 |
aa |
25 |
28 |
aa |
|
3 |
30 |
32 |
aa |
30 |
32 |
aa |
|
齒縫寬度b1 |
4 |
5 |
R4/13.5 |
4 |
5 |
R4/13.5 |
|
齒縫數目n |
30 |
32 |
28 |
30 |
32 |
28 |
|
齒縫節距f |
8.35 |
9.84 |
17.7 |
8.35 |
9.84 |
17.7 |
|
|
|
