Plastic filler series

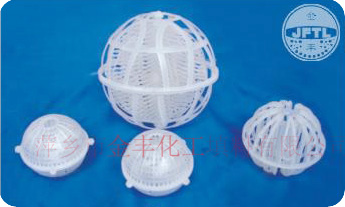

Net cage ball
release time:2012-10-12  released by:Pingxiang City Jinfeng Chemical Packing Co., Ltd.  attention: 10651

Plastic mesh cage ball porosity, heat-resistant, chemical resistant, pressure drop, and mass transfer unit low height, high flooding point, sufficient vapor-liquid contact, small specific gravity, high mass transfer efficiency. Use in a variety of medium temperature of 60-150 degrees Celsius, packed tower is widely used in petroleum, chemicals, chlor-alkali, gas, and environmental protection industries. Can be widely used for a variety of horizontal acid storage tank, condensate storage tank in the water treatment and desalination water tank, a large extent reduce heat loss, reduce carbon dioxide and oxygen in the acid mist and air pollution on the water to protect the health of the operating personnel , to keep the water quality, energy conservation, and the effect of cleaning up the environment. Applicable to horizontal acid storage tanks for petroleum, chemicals, chlor-alkali, gas, metallurgy, environmental protection, power companies, the condensate storage tank in the water treatment and desalination water tank, a large extent of the reduction in acid mist, carbon dioxide in the air and oxygen water pollution.

The main technical indicators:

名稱

規格

直徑×高度×壁厚

mm

比表面積

m²/m³

空隙率

%

堆積重度

Kg/m³

堆積個數

n/m³

干填料因子

M-1

網籠球

38

50

38×1.2

50×1.5

96

82

88

90

110

88

22000

10480

141

112

Implementation of the standards the People's Republic of China machinery industry standard HG / T 3986-2007 "plastic tower packing technical conditions.
