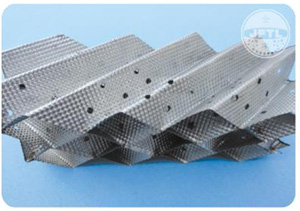

Product structure: a metal plate corrugated packing is composed by a plurality of corrugated parallel and vertically arranged corrugated metal sheet on the corrugated sheets open apertures (or needed openings), the corrugation apex angle about 900, and the corrugated channel formed with the vertical direction.angle into a 450 or 300. Two adjacent corrugated sheet flow channel 900, rotated 900 stacked up and down two corrugated packing, tower smaller diameter flange connection, corrugated packing made ​​of a whole disc diameter slightly smaller than the inner diameter of the tower. In the larger diameter of the tower, each plate corrugated packing into a few blocks through the manhole into the tower, a complete disk in Tanei La spell, rotate 900 installed up and down two packing corrugated sheet, so that the fluid thoroughly mixed in the tower.

Product Performance Profile: metal corrugated plate packing by 0.15-0.20mm thick sheet metal stamping is made, the board φ4mm holes punched certain about 5mm slit, strengthen moist performance and may form two-way infiltration, the opening ratio of approximately 9-12% of the surface of the perforated plates have a special texture, in order to increase the effective mass transfer area. Separation capabilities similar to gauze packing, but the anti-blocking ability is stronger than corrugated packing.

Applications: mainly used in petrochemical, fertilizer industry, natural gas purification, smelting and so on. Such as coal chemical industry (washing benzene tower in the coking plant recovery of crude benzol), B styrene separation, preparation of high purity oxygen, propylene oxide separation debutanizer cyclohexane recovery, gasoline fractionation, atmospheric and vacuum oil refining and other devices as. As used in the crude degassing dehydration process, the three-phase separator or the filler material of the two-phase separator. Material 201 301 304 316 316L 321 several.
